3D Models and 2D Elevations for Vectorworks®

 Stair building is a time-consuming process in the real world and in the CAD world. New England Stair Works symbol sets for Vectorworks® can speed up your design process and create realism in your renderings. The unique classing system allows more control over symbol elements allowing the user to me more productive.



All symbol sets can be used in the lastest versions of Vectorworks® including VW2017

All sets include a .vwx file and a PDF Readme file on how to use the symbols



We've just added a new set of rail profiles and fittings. Fittings include volutes,

goosenecks, quarter turns, upeasings, overeasings and more.

Save 15% when you buy any bundled set.

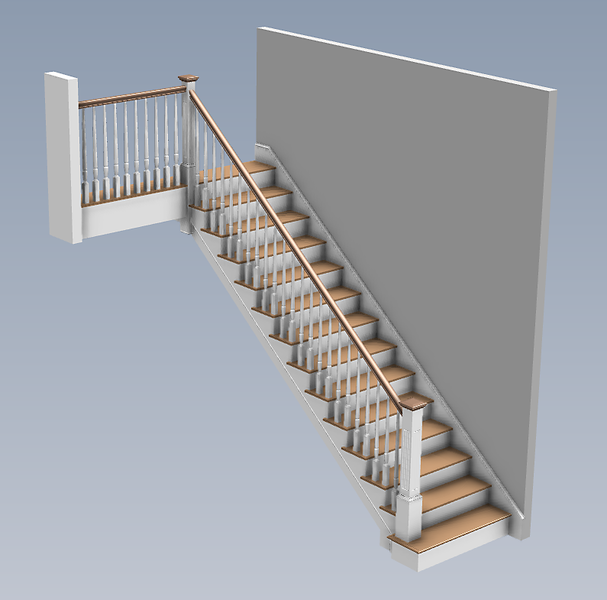

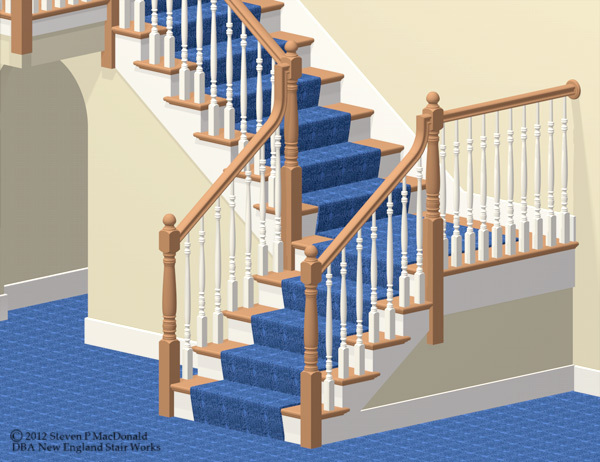

Check out some of the renderings using our Elevation and 3D symbol sets. The 3D stair models were

created without the use of the Vectorworks® stair tool. The symbol sets are stair parts only.

It is highly recemmended that your computer system has a graphics card that can handle detailed 3D graphics.

Some objects may not render properly due to an inferior graphics card.

By clicking on the “Add to cart” button, you acknowledge that the products you select are copyrighted works, and that you are using them under a non-exclusive, paid up, license from Steven MacDonald DBA New England Stair Works and his successors and assigns for use on a single machine. You agree not to reproduce or copy the products or derivatives thereof other than as components of your own plans, drawings, or architectural renderings.

After your payment has been confirmed, you will be sent an email with a link and a password to the web page where your purchased files reside. There, you can download the files you have purchased.

2017 Symbol Sets

(scoll down to see 2014 & 2016 symbol sets)

Rail Fitting Set 1 2017
17.95 USD

4 2D rail profiles and 80 3D rail fittings for post-to-post and over-the-post rail systems. All easings can be adjusted to the pitch of your custom stair. By using the push / pull tool in Vectorworks® you can extend the fittings to create rail sections with no extra modeling. For Vectorworks® 2017

NESWRFS1-2017
Turned Post Set 1 2017
14.95 USD

This hybrid 2D and 3D symbol set includes 38 highly detailed turned newel posts. There are 5 different style posts including fluted, plain, block top, pin top and acorn top. This set is for Vectorworks® 2017 and later.

NESWTPS1-2017
Wood Baluster Set 1 2017
14.95 USD

48 industry-standard hybrid 2D and 3D balusters symbols to add realism to your stair renders. These balusters are modeled with extensive accuracy and detail with a variety of styles, including plain, fluted, taper top and block top. This set is for Vectorworks® 2017 and later.

NESWWBS1-2017
Box Newel Set 1 2017
9.95 USD

This set is made up of 15 highly detailed box and landing newel hybrid 2D and 3D symbols which includes plain, fluted, recessed panel and raised panel. Includes 3-1/2" square landing newels. This set is for Vectorworks® 2017 and later.

NESWBNS1-2017
Elevation Set 1 2017
9.95 USD

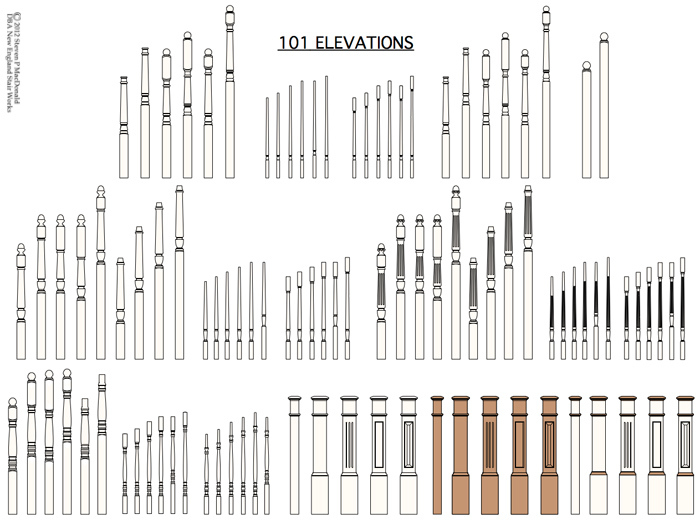

101 2D elevation symbols are included in this set. Many of these symbols also their own unique classing system allowing you to show or hide certain detail elements of each symbol. This set is for Vectorworks® 2017 and later.

NESWES1-2017
Metal Set 1 2017
14.95 USD

62 detailed hybrid 2D and 3D balusters and newel posts. These parts are modeled with extensive detail with a variety of styles. Scroll, Butterfly, Knuckle, Twist and Straight balusters include 33-1/2", 36", 38-1/2" and 41" lengths. Used with Vectorworks® 2016 and later.

NESWMS1-2017
Stair Parts Bundle 1 2017
74.99 USD
( Sales tax and shipping costs not included )

2017 Bundle Includes: Rail fitting set 1, turned post set 1, wood baluster set 1, box newel set 1, elevation set 1, and metal set 1.

NESWSPB1-2017

2016 Symbol Sets

(scoll down to see 2014 symbol sets)

Rail Fittings Set 1-2016
17.95 USD

4 2D rail profiles and 80 3D rail fittings for post-to-post and over-the-post rail systems. All easings can be adjusted to the pitch of your custom stair. By using the push / pull tool in Vectorworks® you can extend the fittings to create rail sections with no extra modeling. For Vectorworks® 2016

NESWRFS1-2016
Turned Post Set 1-2016
14.95 USD

This hybrid 2D and 3D symbol set includes 38 highly detailed turned newel posts. There are 5 different style posts including fluted, plain, block top, pin top and acorn top. This set is for Vectorworks® 2016 and later.

NESWTPS1-2016
Wood Baluster Set 1-2016
14.95 USD

48 industry-standard hybrid 2D and 3D balusters symbols to add realism to your stair renders. These balusters are modeled with extensive accuracy and detail with a variety of styles, including plain, fluted, taper top and block top. This set is for Vectorworks® 2016 and later.

NESWWBS1-2016
Box Newel Set 1-2016
14.95 USD

This set is made up of 15 highly detailed box and landing newel hybrid 2D and 3D symbols which includes plain, fluted, recessed panel and raised panel. Includes 3-1/2" square landing newels. This set is for Vectorworks® 2016 and later.

NESWBNS1-2016
Elevation Set 1-2016
9.95 USD

101 2D elevation symbols are included in this set. Many of these symbols also their own unique classing system allowing you to show or hide certain detail elements of each symbol. This set is for Vectorworks® 2016 and later.

NESWES1-2016
Metal Set 1-2016
14.95 USD

62 detailed hybrid 2D and 3D balusters and newel posts. These parts are modeled with extensive detail with a variety of styles. Scroll, Butterfly, Knuckle, Twist and Straight balusters include 33-1/2", 36", 38-1/2" and 41" lengths. Used with Vectorworks® 2016 and later.

NESWMS1-2016
Stair Parts Bundle 1-2016
74.99 USD

2016 Bundle Includes: Rail fitting set 1, turned post set 1, wood baluster set 1, box newel set 1, elevation set 1, and metal set 1.

NESWSPB1-2016

2014 Symbol Sets

Rail Fittings Set 1-2014
17.95 USD

4 2D rail profiles and 80 3D rail fittings for post-to-post and over-the-post rail systems. All easings can be adjusted to the pitch of your custom stair. By using the push / pull tool in Vectorworks® you can extend the fittings to create rail sections with no extra modeling. For Vectorworks® 2014

NESWRFS1-2014
Turned Post Set 1-2014
14.95 USD

This hybrid 2D and 3D symbol set includes 38 highly detailed turned newel posts. There are 5 different style posts including fluted, plain, block top, pin top and acorn top. This set is for Vectorworks® 2014 and later.

NESWTPS1-2014
Wood Baluster Set 1-2014
14.95 USD

48 industry-standard hybrid 2D and 3D balusters symbols to add realism to your stair renders. These balusters are modeled with extensive accuracy and detail with a variety of styles, including plain, fluted, taper top and block top. This set is for Vectorworks® 2014 and later.

NESWWBS1-2014
Box Newel Set 1-2014
14.95 USD

This set is made up of 15 highly detailed box and landing newel hybrid 2D and 3D symbols which includes plain, fluted, recessed panel and raised panel. Includes 3-1/2" square landing newels. This set is for Vectorworks® 2014 and later.

NESWBNS1-2014
Elevation Set 1-2014
9.95 USD

101 2D elevation symbols are included in this set. Many of these symbols also their own unique classing system allowing you to show or hide certain detail elements of each symbol. This set is for Vectorworks® 2014 and later.

NESWES1-2014
Metal Set 1-2014
14.95 USD

62 detailed hybrid 2D and 3D balusters and newel posts. These parts are modeled with extensive detail with a variety of styles. Scroll, Butterfly, Knuckle, Twist and Straight balusters include 33-1/2", 36", 38-1/2" and 41" lengths. Used with Vectorworks® 2014 and later.

NESWMS1-2014
Stair Parts Bundle 1-2014
74.99 USD

2014 Bundle Includes: Rail fitting set 1, turned post set 1, wood baluster set 1, box newel set 1, elevation set 1, and metal set 1.

NESWSPB1-2014
